Description
Specifications |
|

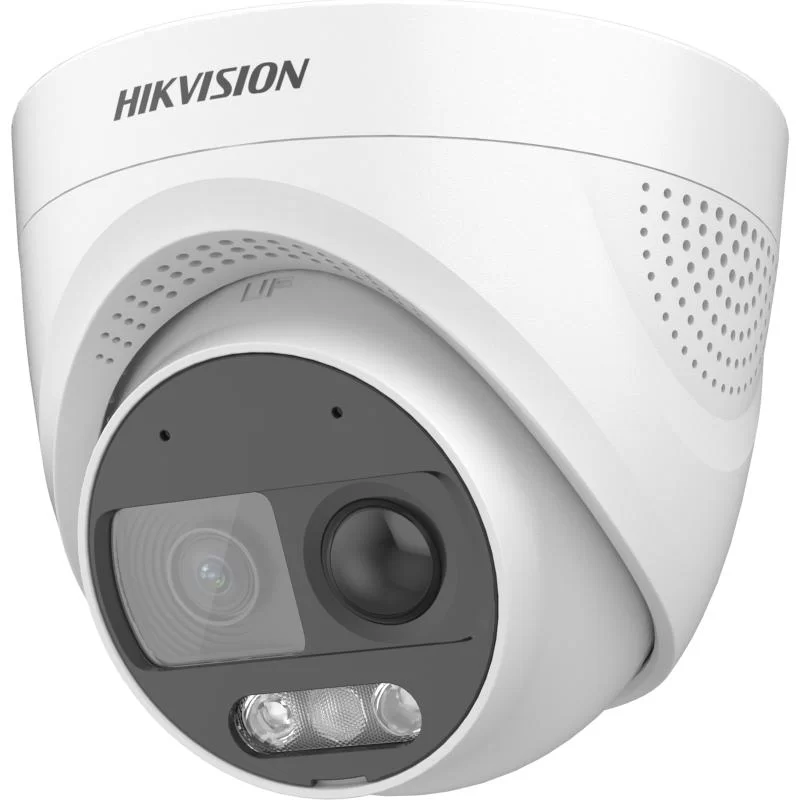

| Product Code | DS-2CE72DF3T-PIRXOS(3.6mm)(O-STD) |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) x 1080 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s;NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Slow Shutter | Max. 16 times |
| Lens | |
| Lens Type | 3.6 mm fixed focal lens |
| Focal Length & FOV | 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Supplement Light Type | White Light |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding, AGC |
| Frame Rate | TVI: 1080p @ 25 fps/30 fps |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR/2D DNR |
| White Balance | Auto/Manual |
| Supplement Detection(PIR) | |
| PIR Range | 11 m |
| PIR Angle | Angle : 110° |
| Interface | |
| Video Output | 1 HD analog output |
| Alarm | 1 line out |
| Flashing Light Alarm (Red & Blue) | |
| Built-in Microphone | Yes |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC ± 25%, max. 9.6 W |
| *You are recommended to use one power adapter to supply the power for one camera. | |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Ø 109.82 mm x 93.66 mm (Ø 4.3″ x 3.7″) |
| Weight | Approx. 396 g (0.87 lb.) |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Approval | |
| Protection | IP67 |
